Mode 2 is a portable EV charger designed for convenient use. It connects directly through a standard plug and socket, offering flexible charging options. This type of charger is typically divided into two variants: one with a 16A air conditioning plug and another with a 32A ordinary plug. By linking the electric vehicle to the household AC power grid, it enables easy charging at compatible outlets. Moreover, it supports both 32A and 16A power sockets, adapting to different electrical configurations. Additionally, the Mode 2 portable EV charger includes a scheduled charging function, allowing users to optimize charging times. As a result, it provides an accessible and user-friendly charging solution. Ultimately, it combines practicality with intelligent features for everyday EV owners.

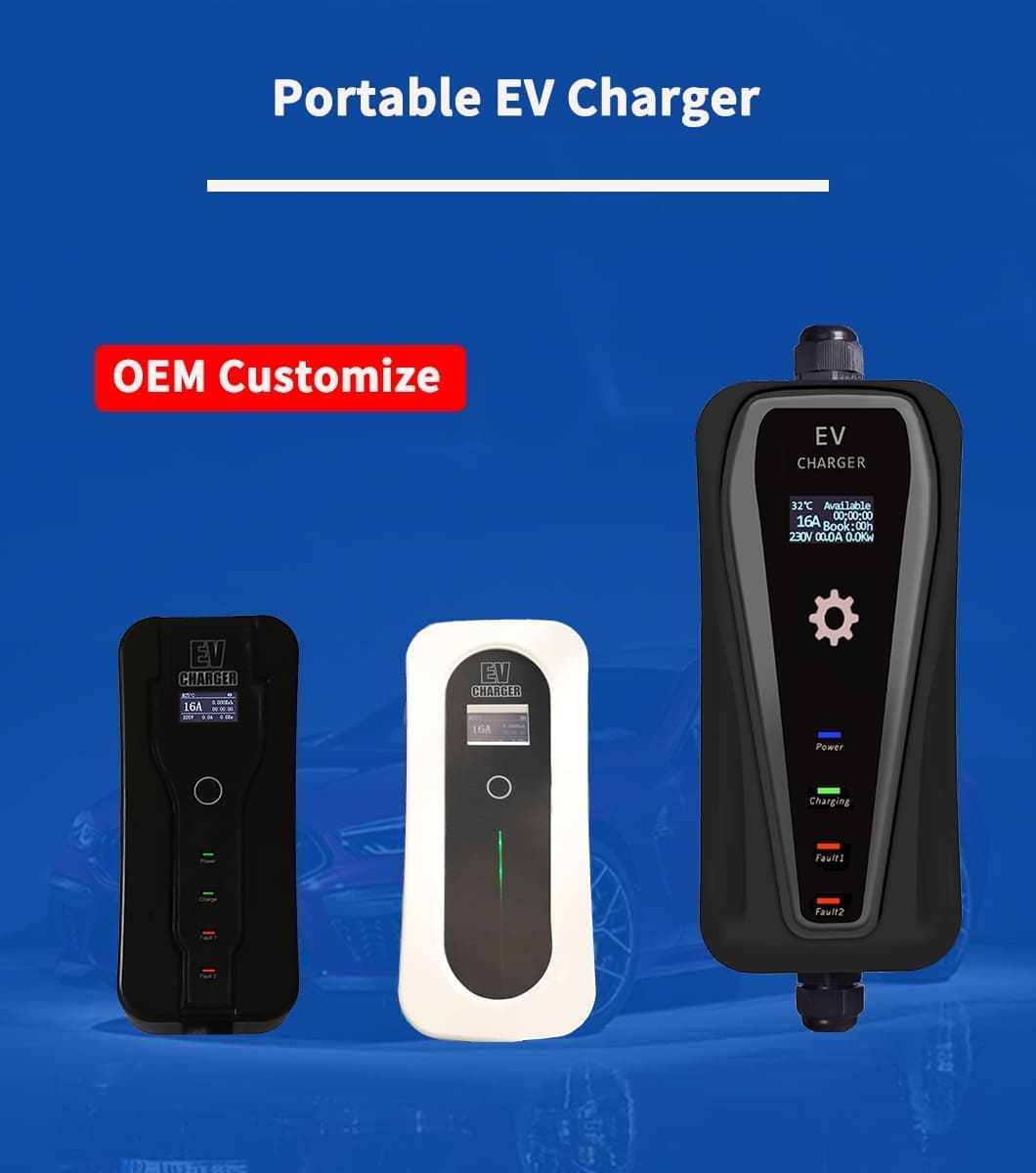

AC MODE2 Portable EV Charger
16A Type 1 | Type 2 | GBT Portable EV Home Charger For Electric Vehicle Charging Cable SCHUKO Plug
SAE J1772 2009 (Type 1) North American standard
IEC 62196-2 (Type 2) EU European standard
IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017）
IEC 62752:2016 IC-CPD EVSE Charging Standard

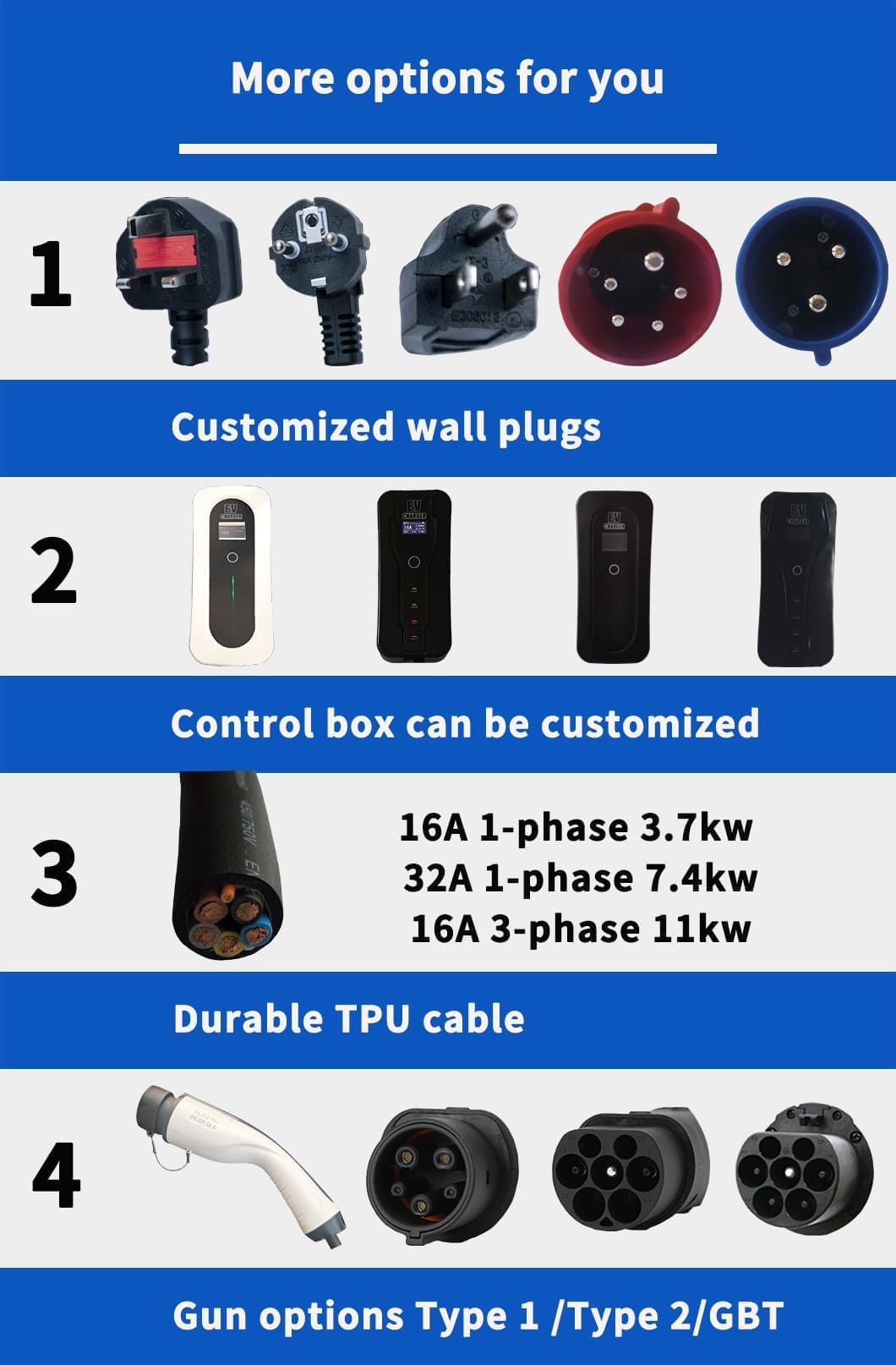

For the wall side plug ,we can send our customers different plugs according to different countries situation .
>>Customers – AU/NZ Plug ,8A,10A,15A
UK Customers – UK Plug 8A,10A,13A
EU Customers – EU Schuko Plug,Blue CEE Plug,Red CEE plug (max 16A)
US Customers – NEMA 5-15/6-15/6-20/L6-30/10-30/10-50/L14-30/L14-50 Plug
Other Customers – Japan Plug / South Africa Plug/Thailand Plug/Isreal Plug/Denmark Plug and etc .Product specification

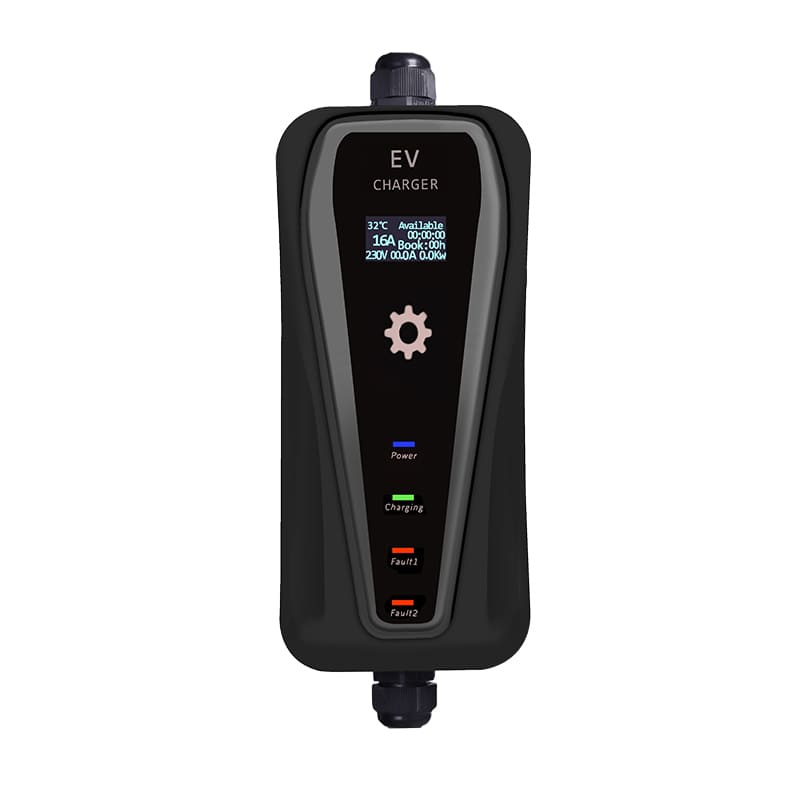

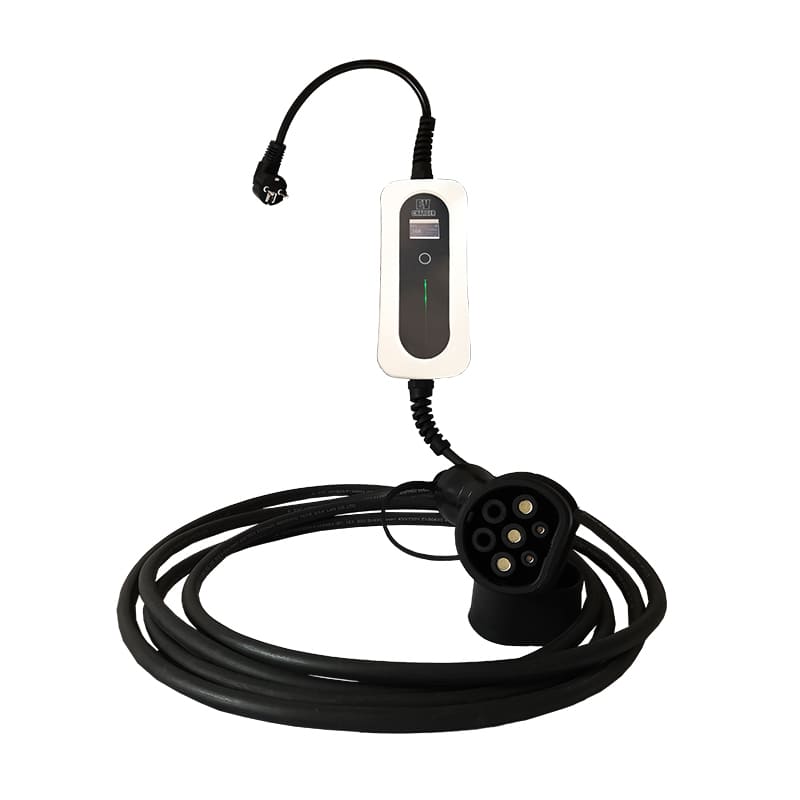

Mode2 (level 2) EV Charging Cable
Model:AG-EVSE-16
Rated current: 6A,8A,10A,16A

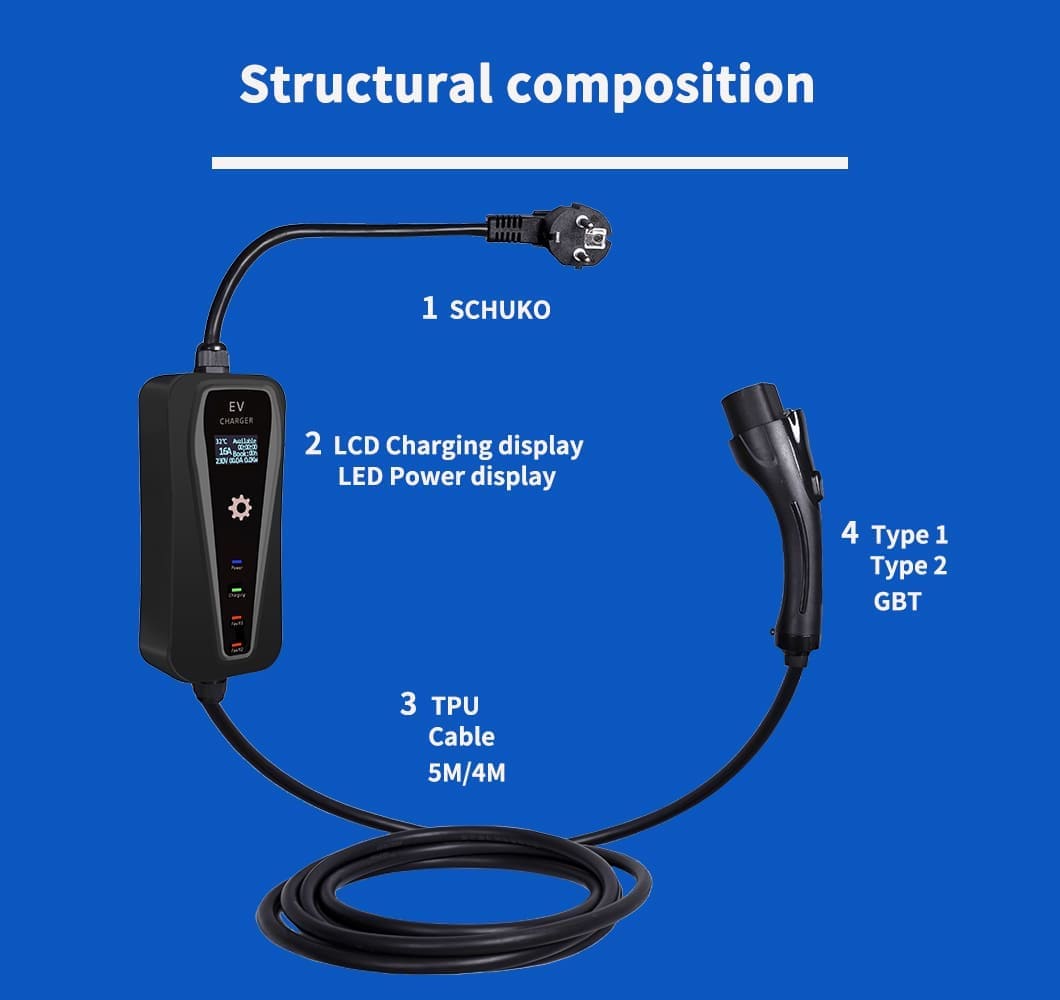

Connector: Type1 |Type2 to Schuko | Cee | NEMA 6-20 | NEMA 5-15
Certificate: TUV, CE
Input/Output: 110V~250V AC
Frequency: 50Hz
Current: 16A
Power: 3.6kw
Length: 5m (16.4ft)
Color: black
IP Class: IP66
Cable: Straight
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max<br />
Portable EV charger, easy and convenient to use with electric cars. AEGEN also manufactures charging station accessories such as EV Charging cable and DC EV Charging module . If you want to know more details , please contact Rose .
